TPD4F003DQDR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPD4F003DQDR
Datasheet:
Description:

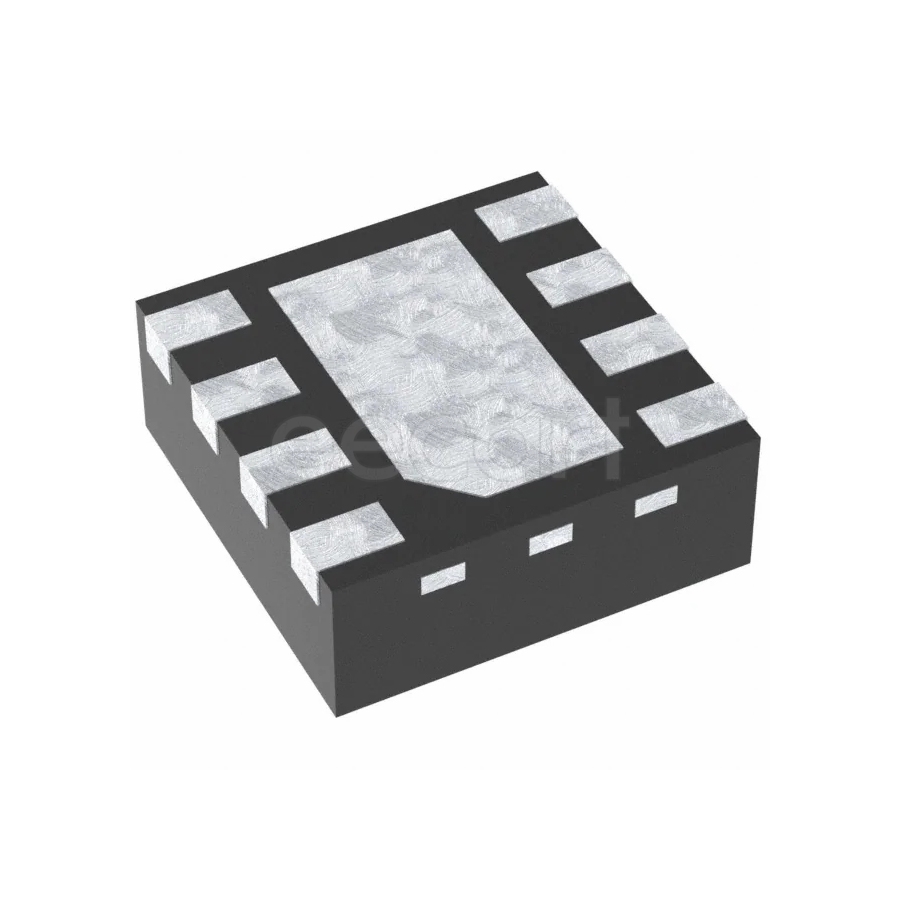

EMI / RFI Filters WSON-8 SMD/SMT RC (Pi) 2nd 200 MHz 8.5 pF 25 dB 100 Ω
| Parameter | Value |
|---|---|
| Capacitance | 8.5 pF |
| Length | 1.7 mm |
| Width | 1.35 mm |
| Termination | Flat |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Resistance | 100 Ω |
| Height | 800 µm |
| Circuit Type | Filter |
| Packaging | Reel |
| Depth | 1.45 mm |
| Thickness | 0.75 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 8 |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Max Supply Voltage | 6 V |
| Number of Channels | 4 |
| Min Breakdown Voltage | 6 V |
| ESD Protection | Yes |
| Attenuation Value | 25 dB |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Filter Order | 2nd |
| Number of Lines | 4 |
| Chemistry/Technology | RC (Pi) |
| Channel Resistance | 100 Ω |
| Cutoff Frequency | 200 MHz |
Stock: 1845
Distributors
pcbx
pcbxUnit Price$0.16483
Ext.Price$0.16483
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16483 | $0.16483 |
| 10 | $0.14551 | $1.45510 |
| 50 | $0.12845 | $6.42250 |
| 100 | $0.11011 | $11.01100 |
| 500 | $0.09438 | $47.19000 |
| 1000 | $0.09032 | $90.32000 |
| 3000 | $0.08644 | $259.32000 |
| 5000 | $0.08114 | $405.70000 |
